Farnsworth House
Introduction
Project two was divided into four separate parts: 2A, 2B, 2C and 2D.
2A: Scale Model in 1:100
2B: Orthographic Projections
2C: Axonometic Projection
2D: Perspective Drawings
We learnt to craft different drawings from a base plan throughout this project.
As well as learning to draw two-point and one-point perspective drawings.
Reflection
I particularly enjoyed this project, building models is a therapeutic exercise for me.
Overall this project was enjoyable, drawing orthographic and axonometric drawings was a breeze.
The only real issue I encountered was with 2D, it was hard to get the right size for the two-point perspective drawing.
Many times the drawing ended up too small, but with trial and error of moving the picture plane, I managed to get it to the size I was happy with.

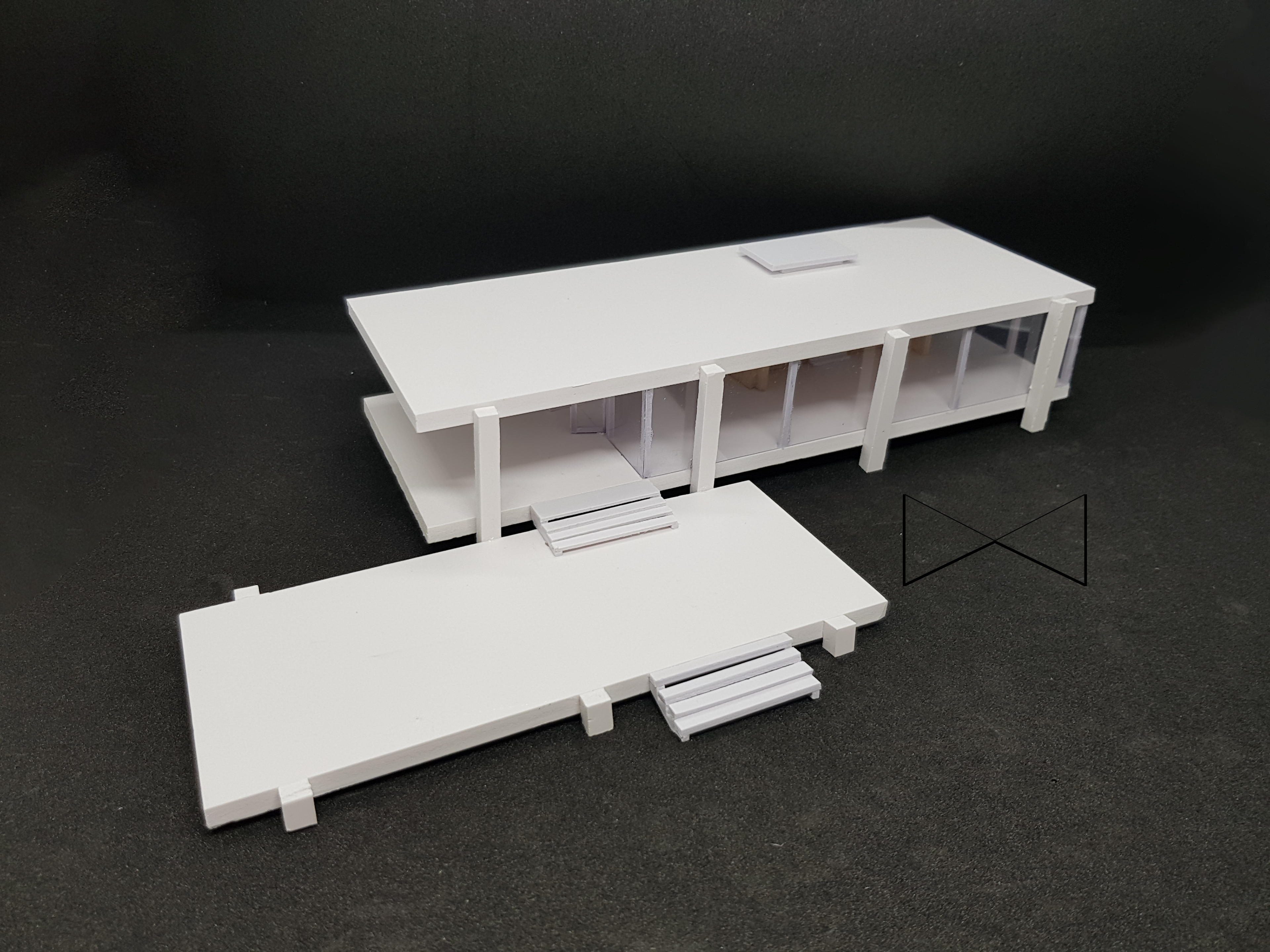

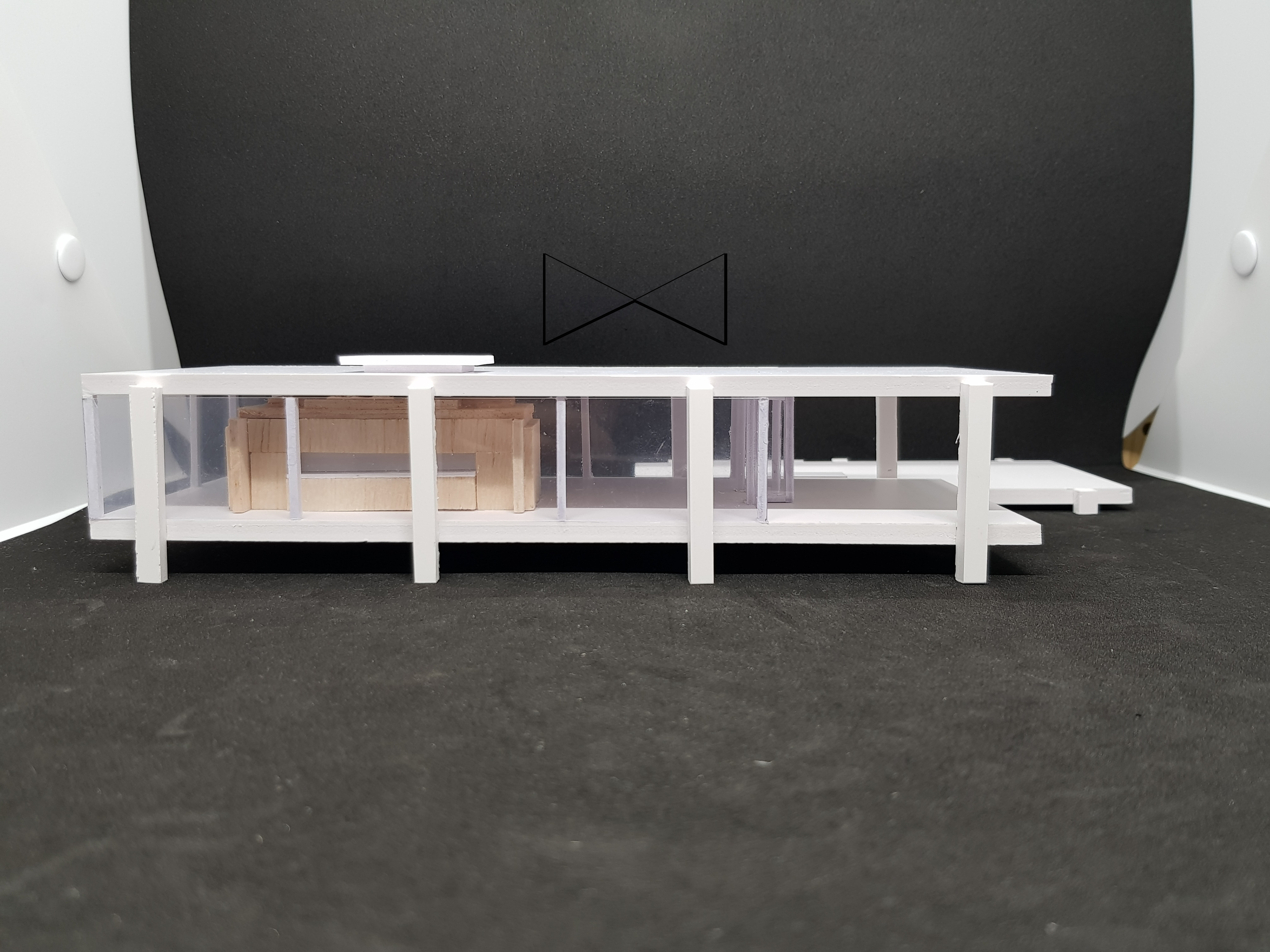

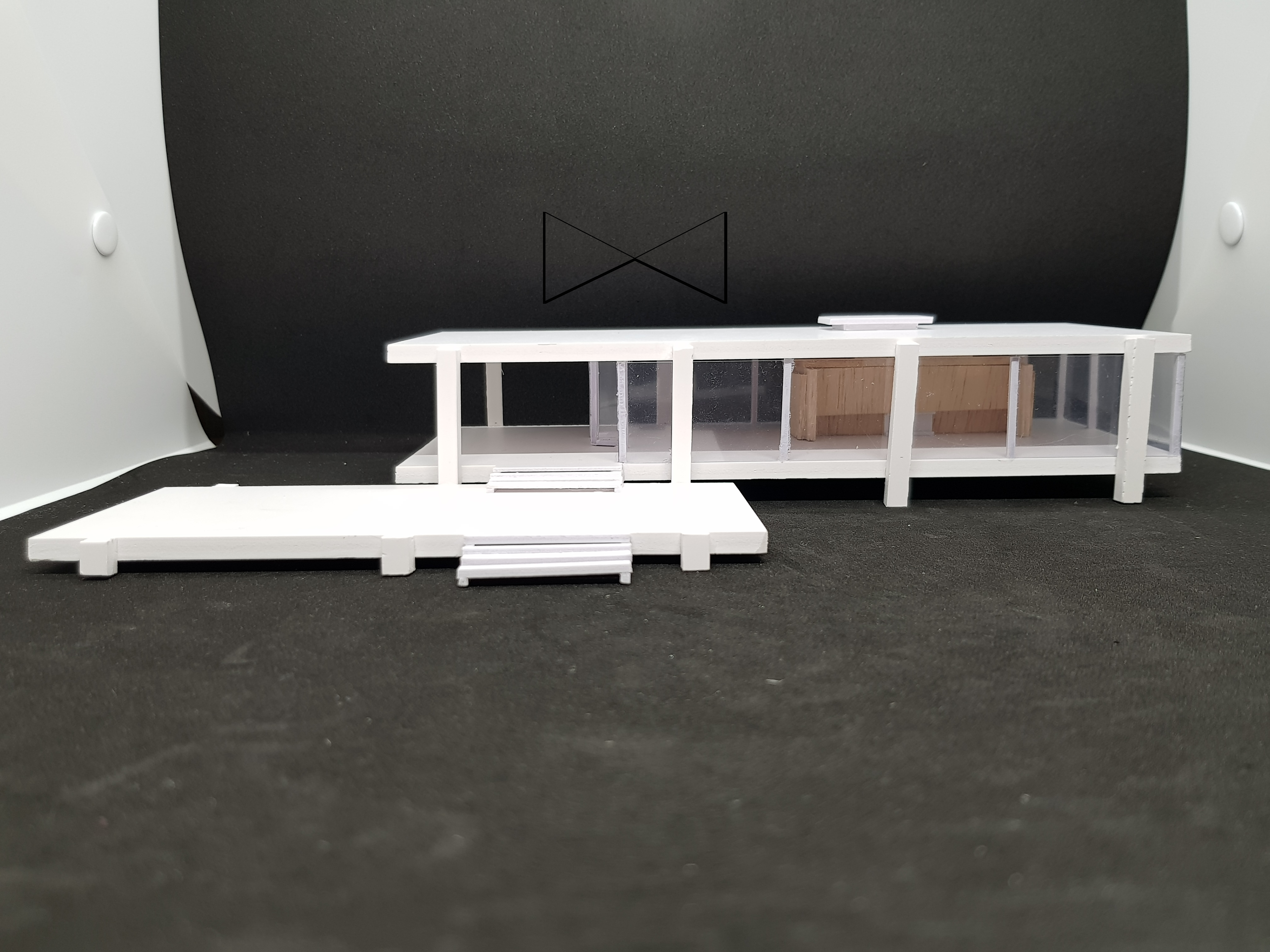

Project 2A: Scale Model
Model
Time-lapse Video

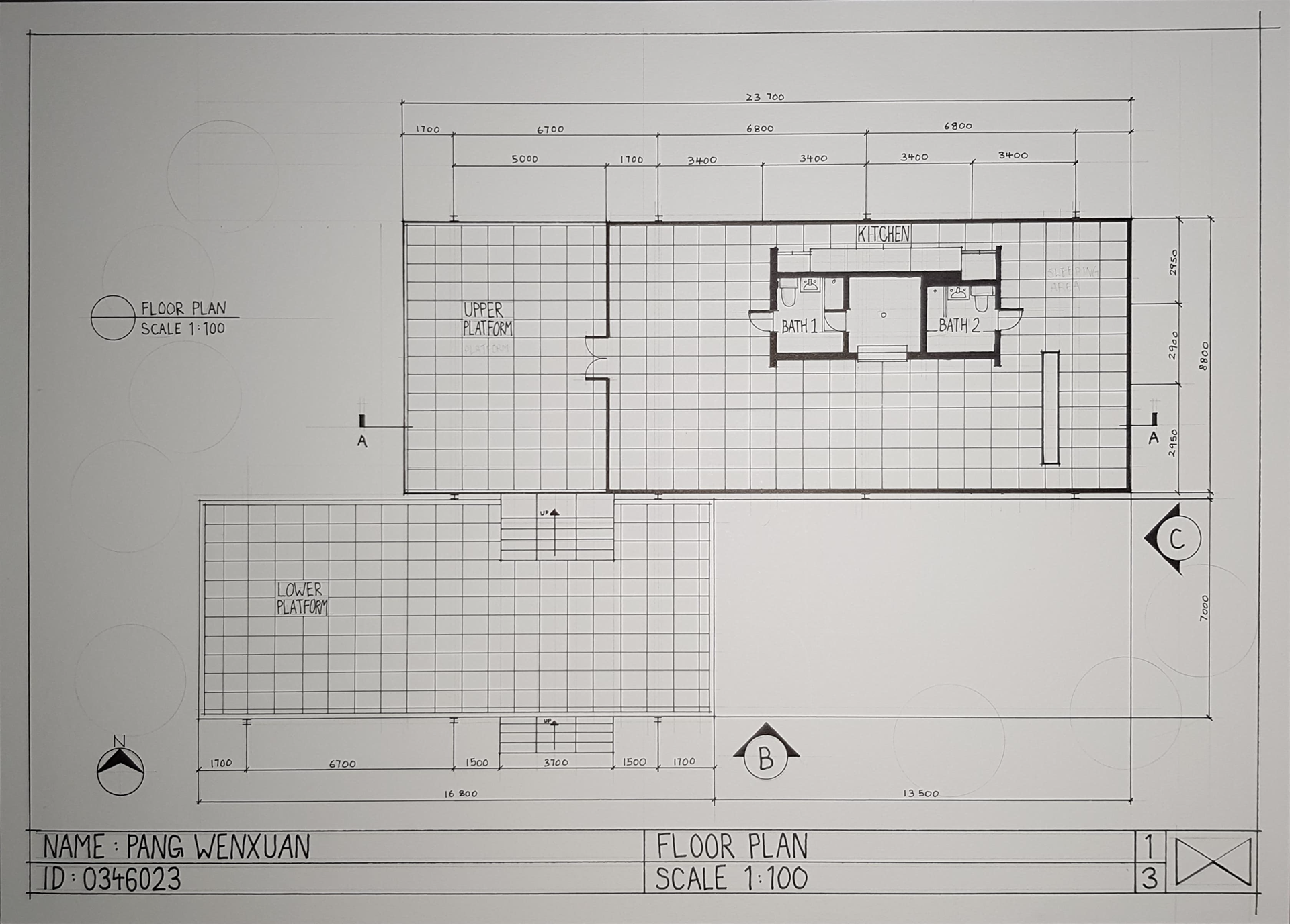

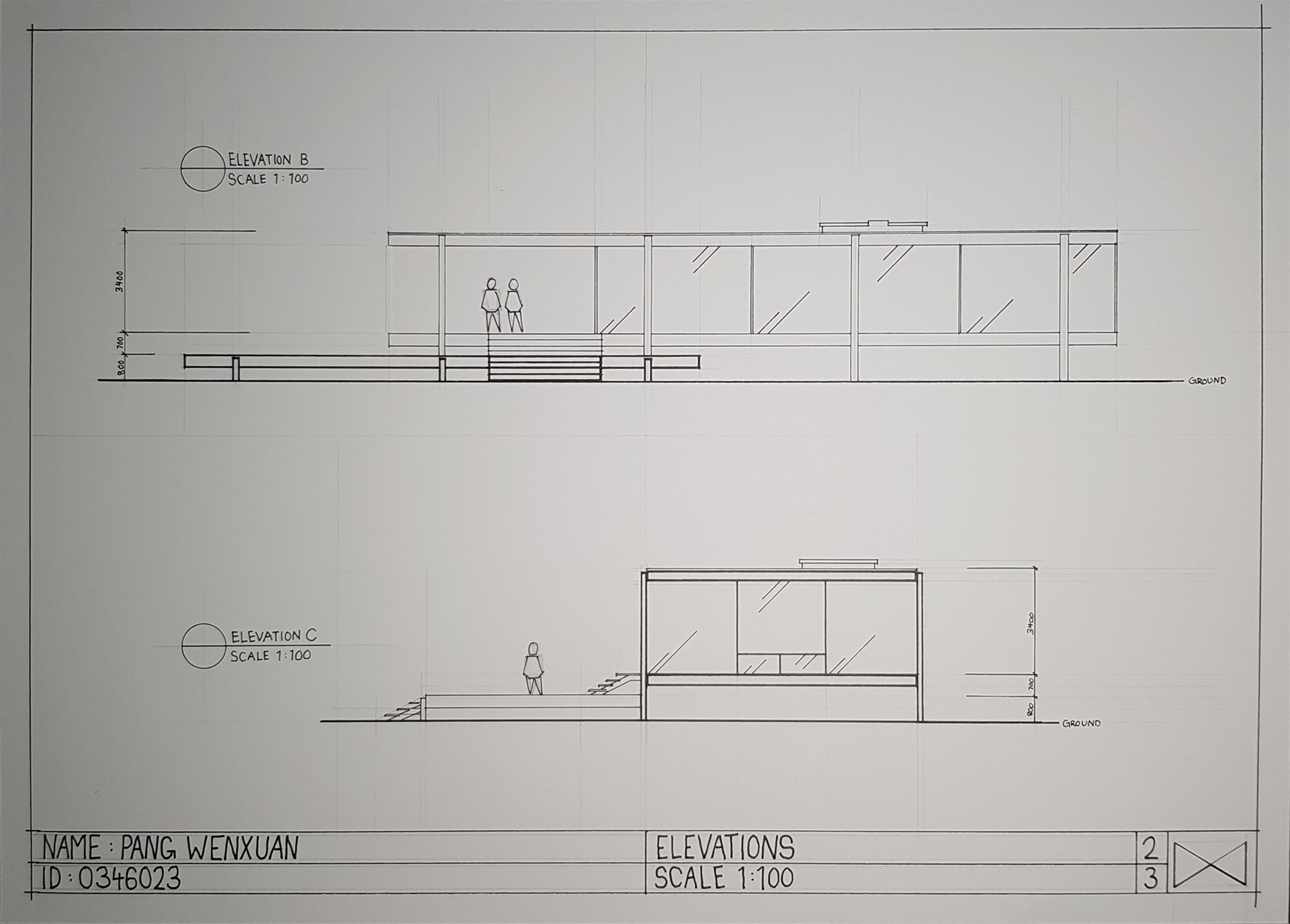

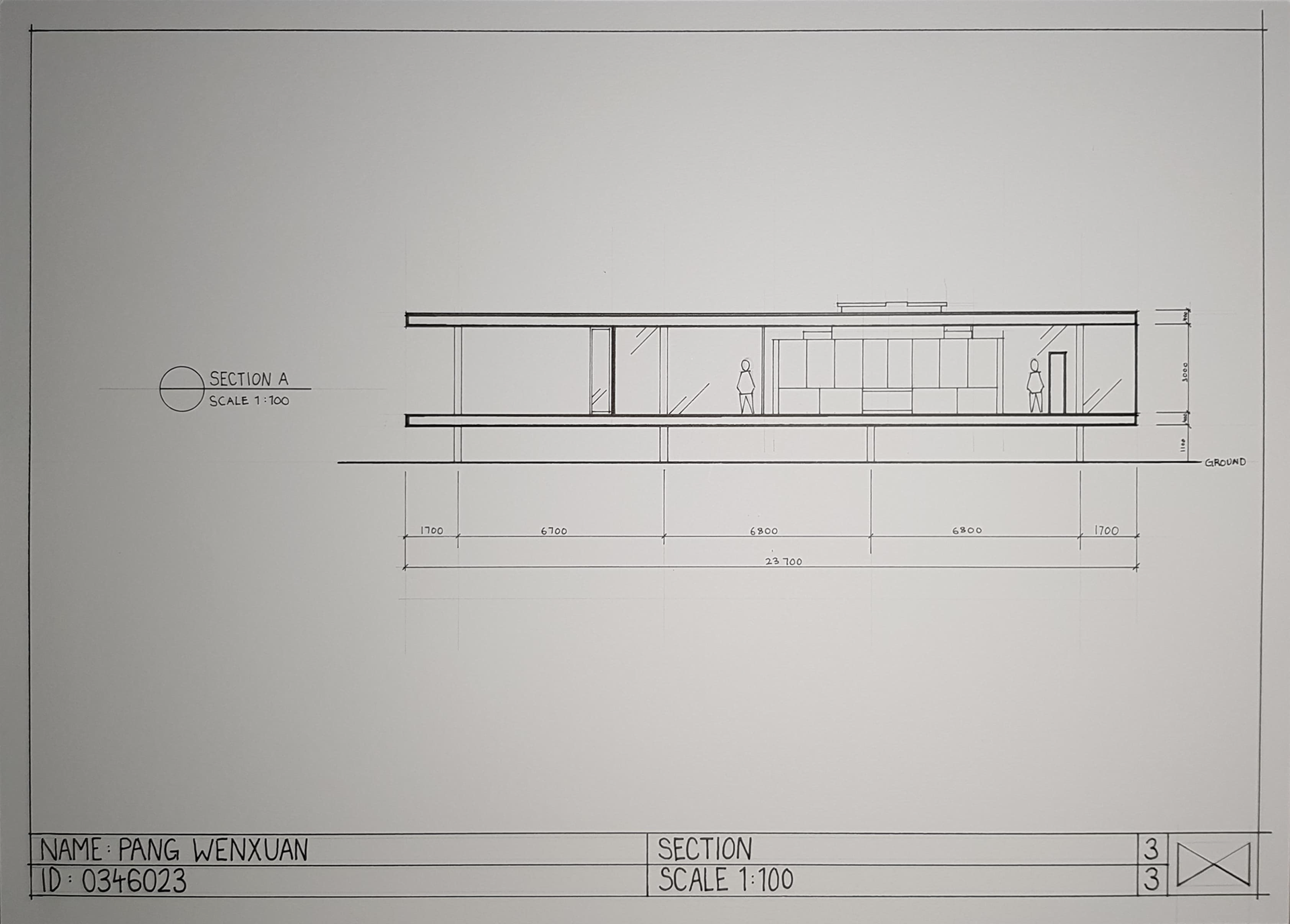

Project 2B: Orthographic Projections
Drawings

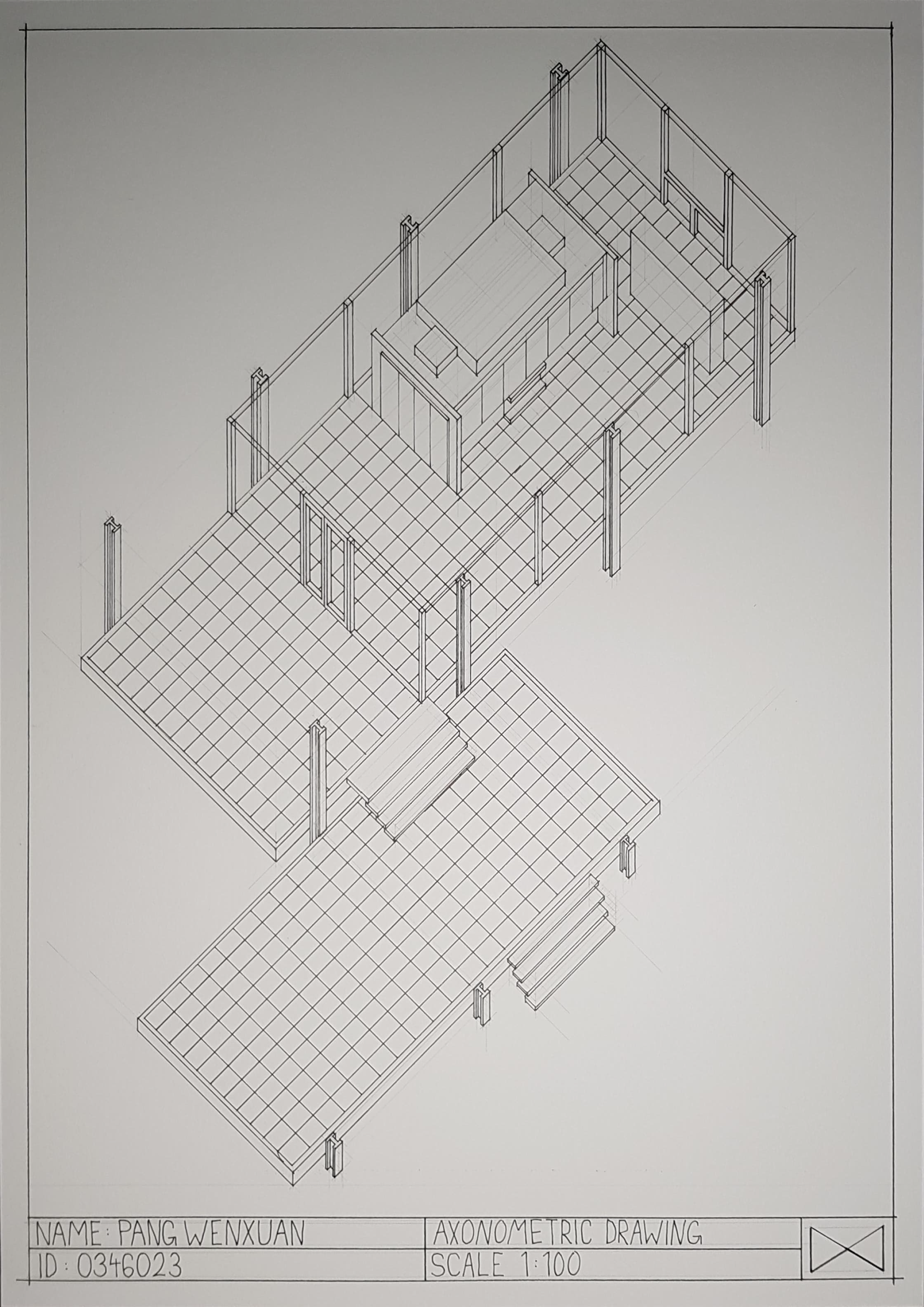

Project 2C: Axonometric Projection
Drawings

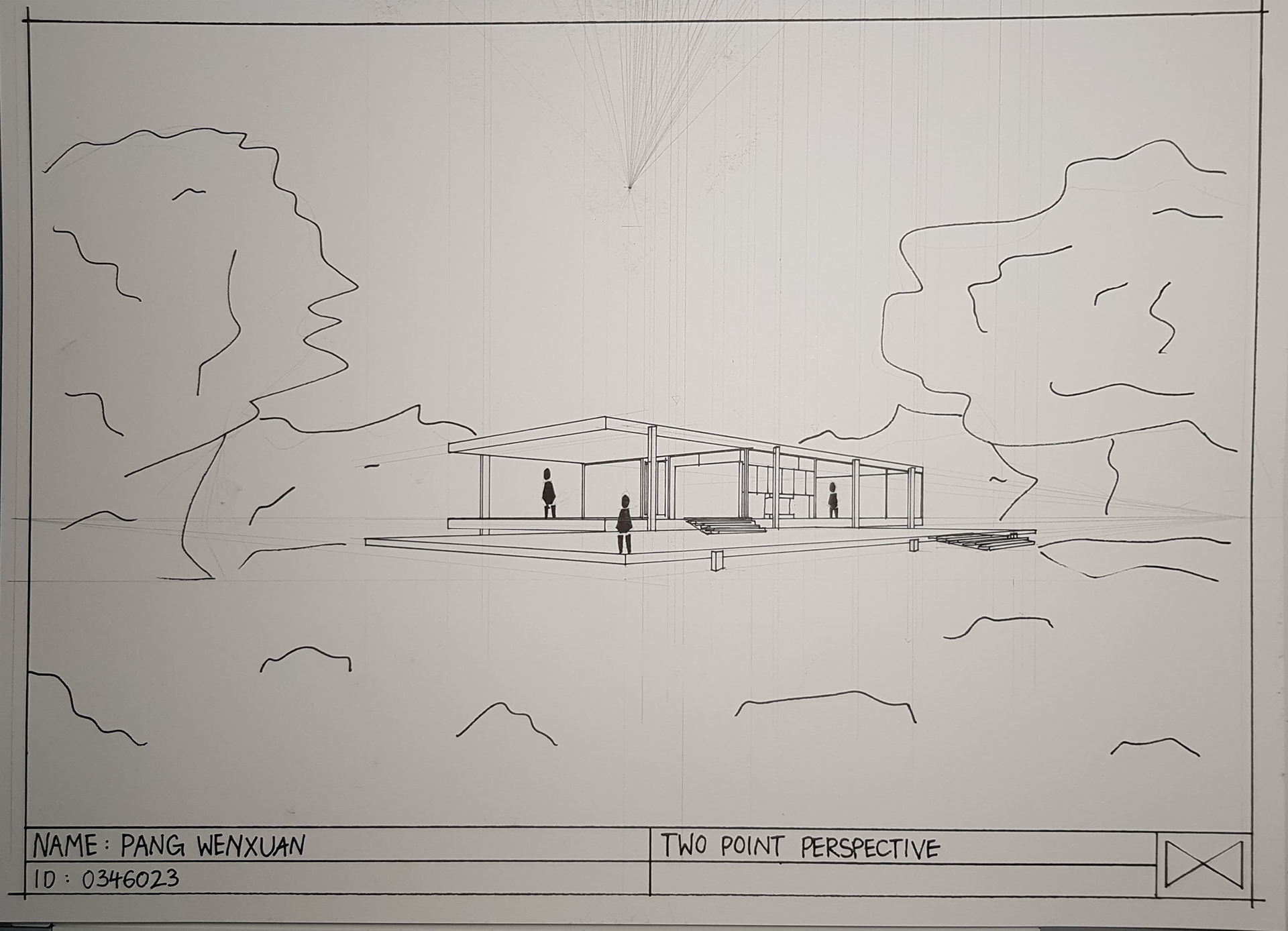

Project 2D: Perspective Drawings
Drawings
